Genuine Hettich Intermat 9930 Corner Cabinet Folding Door Hinge – 50°/65°, 35mm Cup, Nickel Plated, Overlay
Sold out
£12.99

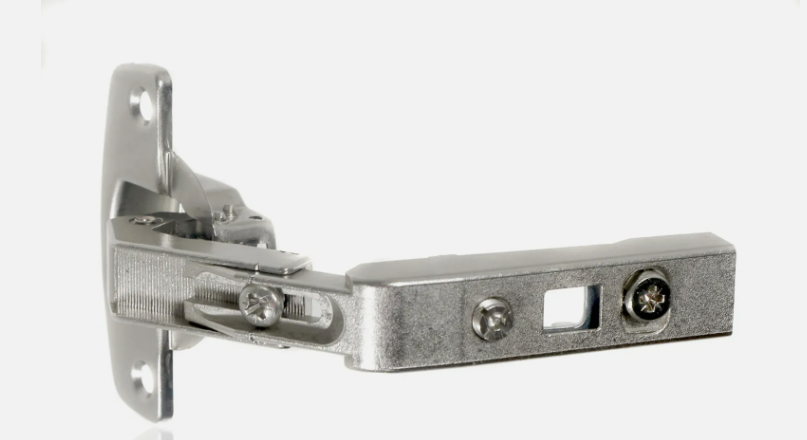

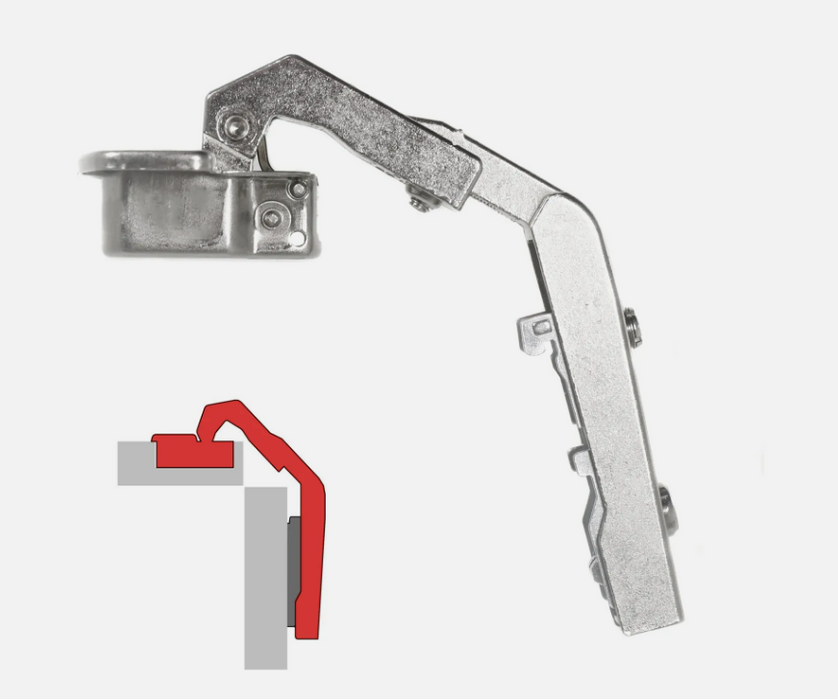

Genuine Hettich Intermat 9930 hinge for corner cabinet folding doors. It's nickel plated, overlay type, without a self-closing feature, and opens to 50° / 65°. It's the part you need to repair or refit a kitchen corner unit door that sags, drops or won't close properly.
Specification
- Brand: Hettich (genuine original)
- Series: Intermat 9930
- Application: Corner cabinet folding doors
- Self-closing: No (stay-closed function: yes)
- Opening angle: 50° / 65°
- Cup diameter: 35mm
- Cup depth: 12.8mm
- Drilling pattern: TH 52 x 5.5mm
- Installation: Press-in (ø 10 x 11mm dowels)
- Door thickness: 15 to 21mm
- Wood-framed doors: profile width from 50mm
- Base: 24mm
- Diagonal adjustment: +9.5mm / -9.5mm
- Overlay adjustment: +2mm / -2mm
- Finish: Nickel plated
- Weight: 0.1kg
Check before ordering
Compare your existing hinge, check the cup diameter (35mm) and the drilling pattern on your door and cabinet before ordering.
