Upper & Lower Door Hinge Pair – Bosch, Neff & Siemens Integrated Fridge Freezer
Compatible replacement Hettich door hinge set for Bosch, Neff and Siemens integrated fridge and freezer models, sold as a pair (top and bottom hinges).
- Quantity: 2 hinges (upper + lower, fits left or right hung doors)
- Compatibility: Compatible (not OEM)
- Replaces part: 481147

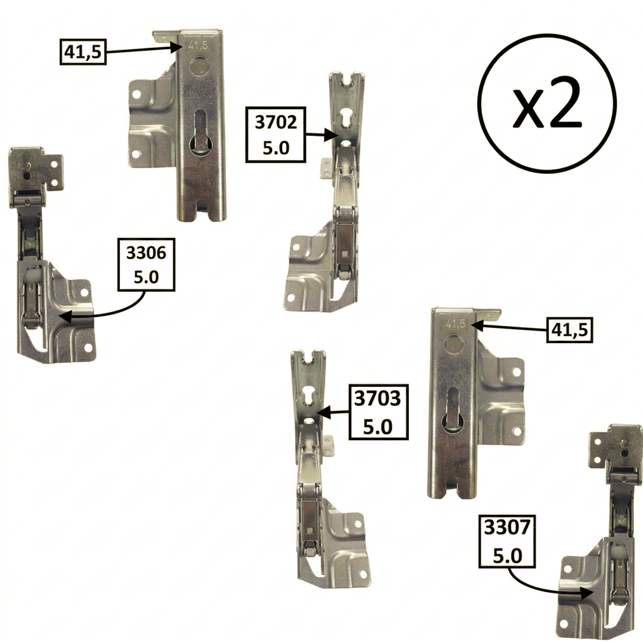

- Hettich stamp references: 3702 5.0, 3703 5.0 (inside, visible with hinge in place); 3306 5.0, 3307 5.0 (reverse, visible with door removed); 41.5 (reverse side mark)
Identification Guide
Check the stamps on your existing hinges to confirm compatibility. Hinges fit diagonally opposite each other depending on which side the door is hung. It is strongly recommended to replace both hinges at the same time.
Compatible Bosch Models (selection)
KIF20A50, KIF24A60, KIF25A60, KIF25A61, KIF26E50, KIF26E51, KIF27A50, KIF27A51, KIL16441, KIL18A50, KIL18A51, KIL18A60, KIL18A61, KIL18E50, KIL18E51, KIL18E60, KIL18E61, KIL18V40, KIL18V41, KIL18V50, KIL18V51, KIL20A60, KIL23441, KIL23442, KIL24440, KIL24441, KIL24443, KIL24450, KIL24451, KIL24460, KIL24461, KIL24A40, KIL24A50, KIL24A51, KIL24A60, KIL24A61, KIL24A80, KIL24A90, KIL24A91, KIL24V40, KIL24V41, KIL24V50, KIL24V51, KIL70440, KIL70441, KIL70442, KIM24440, KIM24441, KIM26440, KIM26443, KIM28440, KIM28441, KIM28442, KIM30440, KIM30441, KIM30443, KIN32A40, KIN32A41, KIN32A42, KIR17441, KIR17442, KIR18440, KIR18441, KIR18443, KIR18450, KIR18451, KIR18A40, KIR18A50, KIR18A51, KIR18A60, KIR18E50, KIR18E51, KIR18V40, KIR18V41, KIR18V50, KIR18V51, KIR20440, KIR20441, KIR20A50, KIR20A51, KIR20A60, KIR20V40, KIR20V41, KIR24A40, KIR24A41, KIR24A50, KIR24A51, KIR24A60, KIR24V40, KIR24V41, KIR24V50, KIR24V51, KIR25440, KIR25442, KIR26440, KIR26441, KIR26443, KIR26450, KIR26451, KIR70440, KIR70441, KIR70442, KIS28A60, KIU26441, KIU26444, KIV28A50, KIV28A51, KIV32A40, KIV32A41, KIV32A50, KIV34A20, KIV34A21, KIV34A40, KIV34A41, KIV34A50, KIV34A51, KIV34V40, KIV34V41, KIV38A40, KIV38A50, KIV38A51, KSL20S51, KSL20S52.
Compatible Neff Models (selection)
G5614X1, G5614X4, G5614X6, G5624X0, G5624X4, G5624X5, G5624X6, G5624X7, K4254X4, K4254X6, K4254X7, K4255X1, K4255X3, K5604X4, K5604X6, K5604X7, K5605X0, K5605X1, K5605X2, K5614X0, K5614X1, K5614X4, K5614X6, K5614X7, K5624X0, K5624X1, K5624X4, K5624X6, K5624X7, K5625X1, K5625X2, K5625X4, K5634X0, K5654X0, K5654X1, K5654X2, K5654X4, K5654X6, K5654X7, K5665X1, K5665X2, K5665X3, K5744X4, K5744X6, K5744X7, K5745X1, K5745X2, K8614X0, K8614X1, K9514X4, K9514X6, K9524X4, K9524X6, K9524X7, K9525X4, K9625X0, K9625X1, K9625X2, K9625X3, K9625X4, K9625X6, K9724X4, K9724X6.
Compatible Siemens Models
KI18R40GB, KI18RA40GB, KI24RA40GB, KI26M40GB, KI26M443GB, KI26R40GB, KI26R440GB, KI26U444GB, KI30M40GB, KI30M440GB, KI30M443GB, KI32VA40GB, KI38VA40GB.
Compatible alternative product – all manufacturer names and part numbers used for reference only. Same-day dispatch via Royal Mail Tracked.
